Content Distribution to Licensed Domains via DVB-T and P2P

BBC Research & Innovation, as part of the AX4HOME project, explored how traditional broadcasting and the AXMEDIS content publishing, distribution and protection platform could come together for the home user (viewer), in particular how this could bring added value to the user whilst respecting rights-holders.

The demonstrator illustrates a complete chain:

  • recordings of free-to-air broadcasts can be booked
  • the recordings are personalised and enhanced with supplementary AXMEDIS content - such as recommendations, trailers and web-links
  • content protection is applied, giving the user the right to play the content on any device within their 'home domain' but not further afield.

To view a short video about the demonstrator, please click here.

Technical note 6301: "BBC DVB-T Solution for PC " (here)

Advantages for the Viewer and the Broadcaster

The home user benefits from a viewing experience with enhancements over the normal broadcast version of the program. The program also has useful metadata attached - such as description of an episode - and provides easy links for the viewer to follow to reach related websites and content. (find out more)

For the broadcaster, this kind of approach provides the opportunity to promote related content to the viewer and a mechanism for the viewer to record, time-shift and share broadcast programs whilst respecting any rights associated with that content. (find out more)

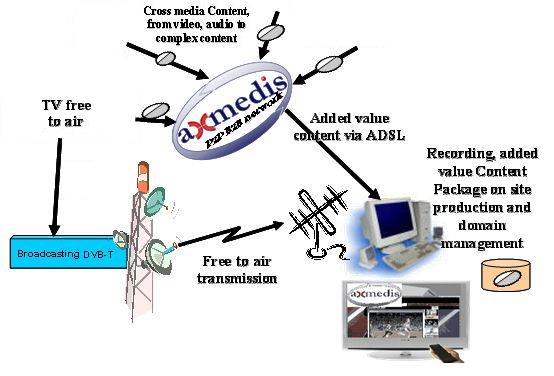

The overall Scenario

With the AX4HOME client software DVB-T content is being captured and converted to an AXMEDIS object. This object can be enhanced from the simple content delivered over air using internet metadata services. The AX4HOME system uses the domain management functionalities provided by the AXMEDIS Framework (AXFW) to register users and devices to form a home domain, and domain licenses are introduced based on the native AXMEDIS license.

The User Experience

This system is a closed test environment, not available to general users. Screenshots will give you an idea of the user experience.

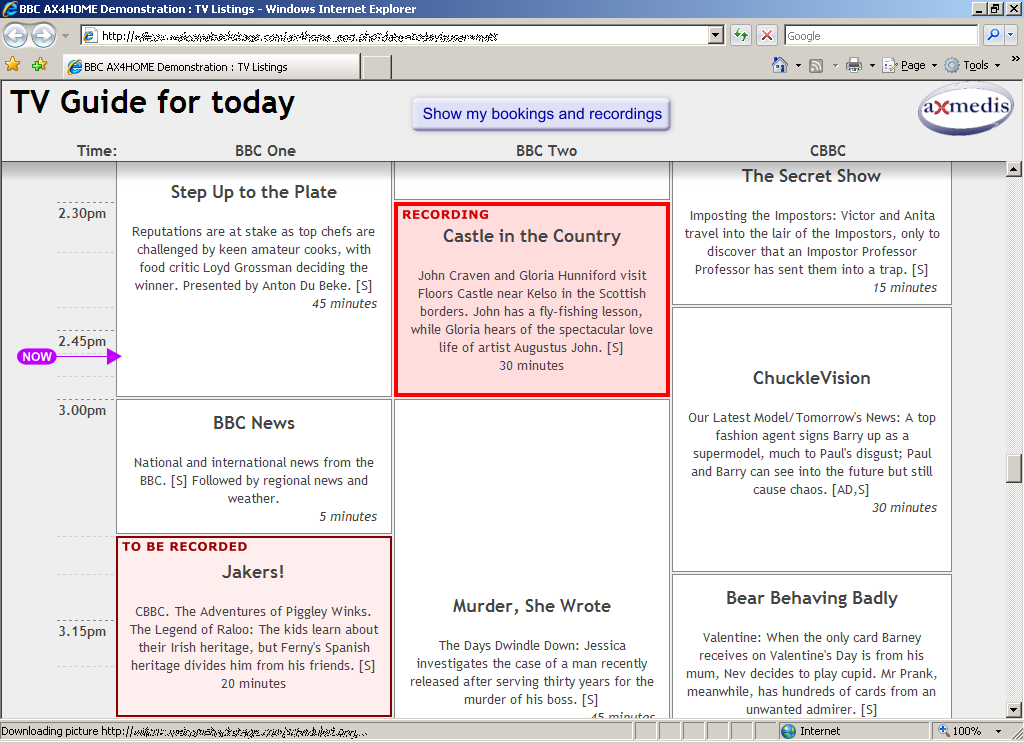

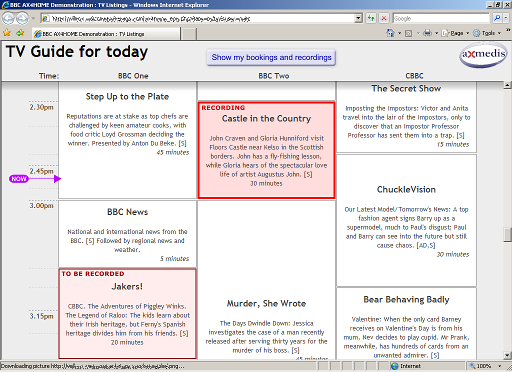

When a viewer wishes to record a program, they can browse the broadcast schedules using a web based Electronic Program Guide (EPG) to select programs to be recorded.


See larger image

This would typically be served by the broadcaster or a third party. The schedule provides a modified Content-Reference-ID (CRID) that ties the schedule to identifiers in the broadcast stream. The Electronic Program Guide (EPG) and CRIDs are based on a source of TV-Anytime metadata.

To select a program for recording, the user simply clicks on it. The AX4HOME client software, running on the user's PC logs the booking and, using an attached DVB-T capture device records the program when it is broadcasted.


See larger image

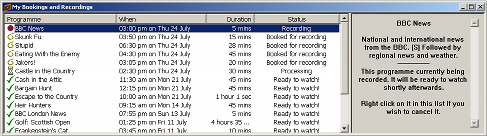

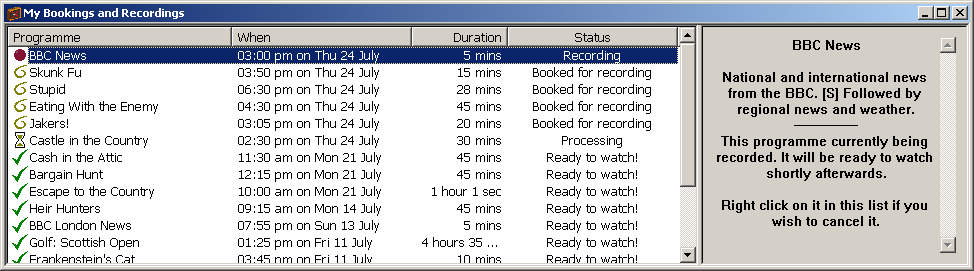

The AX4HOME client software provides a simple interface to manage what programmes are scheduled to be recorded.

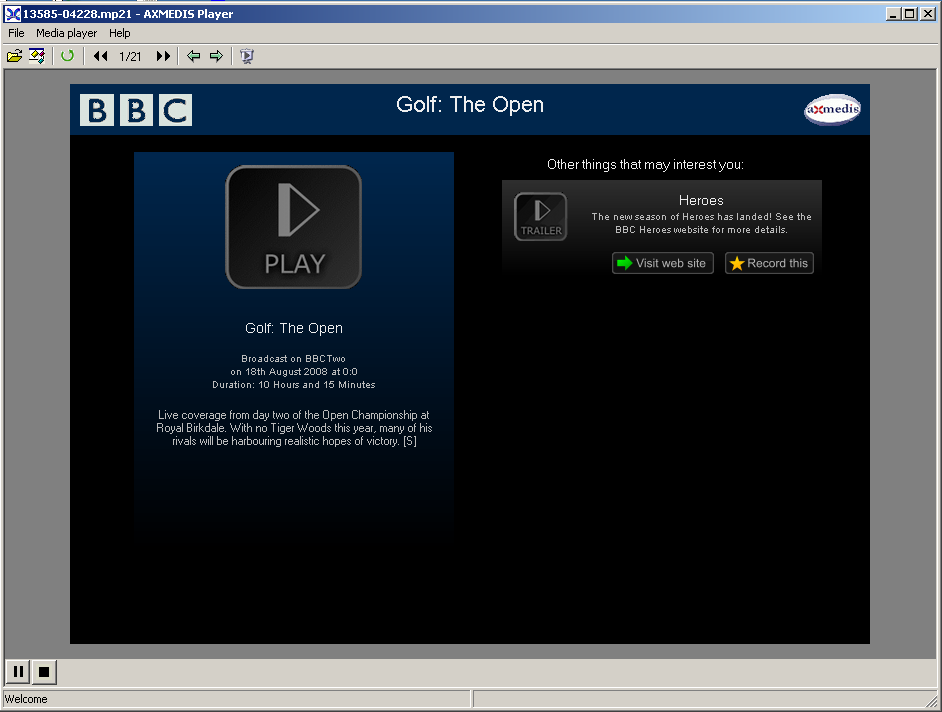

Once a recording is complete, there is a short delay, then the programme is presented to the user as read to watch. AXMEDIS rule scripting is used to protect and enhance the broadcast content. Enhancements are fetched from the AXMEDIS peer to peer network and can include:

  • trailers or 'record this' buttons for related programmes that may interest the viewer
  • links to a programme or broadcaster website
  • metadata relating to the programme, such as an extended description (sourced from a TV-Anytime data web API)

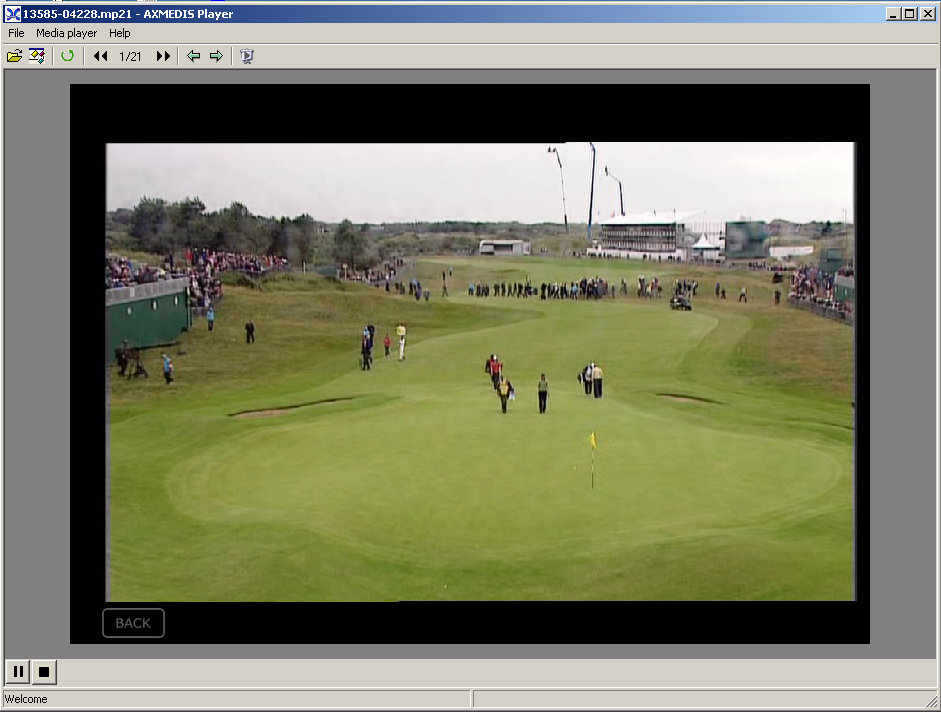

These are brought together in a single AXMEDIS object, unified with SMIL into a single presentation for the viewer to watch:


See larger image


See larger image

The protection applied will enable the user to transfer the content to any other devices registered in their same 'home domain' but not further afield.

Opportunities for the broadcaster

  • Efficient distribution
  • Personalisation and promotion
  • Rights protection

By combining content delivered by traditional digital broadcasting with supplementary content delivered via the internet, this presents the broadcaster with an opportunity to personalise or customise content for the individual user whilst ensuring that the bulk of content delivery is still cost effective, efficient and of high quality

When the AX4HOME client software assembles a recording into an AXMEDIS object, it combines the recording with supplementary video and textual enhancements that has been fetched from the AXMEDIS peer to peer network. The client queries a server belonging to the broadcaster to determine what enhancements are appropriate for the particular recording, and possibly for the particular user. The broadcaster can therefore take the opporunity to target the user with further content that will specifically appeal to them.

AXMEDIS' rights management capabilities are used to protect both the peer to peer distributed enhancements and the final recordings produced by the client software. This therefore can assure rights holders that content will only be used and distributed in accordance with the licences they wish to grant.

  • Example of mp21 object produced by the demonstrator
  • Index:



    Related documents

    Related links



    Configuration of an AX4HOME system:

    A typical setup would require a home user to have:

    Infrastructure needed by the Broadcaster:

    • Existing DVB digital broadcasting infrastructure
    • Programme Schedules web service (TVAnytime format, or suitable equivalent with unique content identifier URIs)
    • Recommendation engine web service (mapping users and content identifiers to AXMEDIS objects)
    • Editorial services to design and create enhancements and publish them to the AXMEDIS peer to peer network
    • Integration of appropriate 'recording' links into existing programme related web pages and/or the creation of a web Electronic Programme Guide

    The demonstration setup:

    • "home user" laptop with
      • Windows XP
      • Hauppauge Nova-T WinTV DVB-T capture device (USB 2)
      • AX4HOME client software
      • AXEPTool, AXMEDIS Content Production Tools, AXMEDIS Player
    • "broadcaster" laptop with
      • Windows XP
      • MPEG Transport Stream streaming software
      • USB to ASI Output device
    • "transmitter" ASI to DVB-T modulator
    • Programme Guide, Schedules and recommendation services server:
      • TV-Anytime experimental server
      • Recommendations server
      • Electronic Programme Guide web pages

    AXMEDIS Tools involved:

    • AXMEDIS Player for PC
    • AXMEDIS Editor/GRID node configuration to execute script for manipulation of AXMEDIS Objects
    • AXMEDIS P2P (AXEPTool connected with the AXTracker, that can be controlled by an AXCP node to migrate, diffuse, and uniform content,AXTracker, Query Support, B2B Network)
    • AXMEDIS DRM (PMS, AXCS, Registration Portal, Certification Authority)

    Contact us for more information

    To find out more about this demonstrator, please get in touch: This e-mail address is being protected from spam bots, you need JavaScript enabled to view it
